Arcom EX1 Port Expander expands the functionality of a regular Voip Node and repeaters.
ALLSTAR - Worldwide
This USB sound fob interface works extremely well for ALLSTAR nodes and with modifications also for IRLP Nodes.
ALLSTAR, ECHOLINK and DVSWITCH for Digital Modes
Leveraging the awesome ClearNode ALLSTAR solution for using regular FM radio to talk on multiple VOIP modes.
AREDN Capability
Employing a high - speed data network independent of the Internet and create a backbone to pass higher data communication.
RC-210 Controller
A fully loaded controller to add additional control capabilities and monitoring.
SNV-12 Signal and Noise Voter
Adding additional remote receivers and advanced linking capability.
Sol Buck Boost 20 Amp MPPT Charge Controller
Supports Solar Panel or power supply charging of batteries in off-grid battery powered scenarios.
Radio-less node and more…
- Harness the power of a full duplex radioless node to work HF or Satellite communications or regular full duplex communications.
YAESU FTM-6000R
This dual band 50 watt basic transceiver with a built-in data interface works great for IRLP and ALLSTAR simplex nodes.

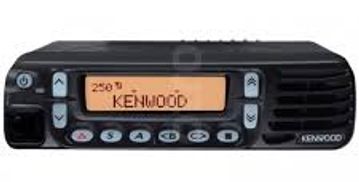

KENWOOD TK-8180K2
KENWOOD TK-8180K2
These commercial surplus mobile radios make great link radios and exciters in analog and digital modes when a fan is used and RF power output is reduced. A DB-25 connector is used to interface to this versatile radio. These radios need specific programming software and cable.
Motorola CDM Series Commercial Radios
These surplus discontinued commercial single band mobile radios come in 10 meter, 6 meter, 2 meter, 220 mhz and 440 mhz versions. With a fan and RF power turned down make great radios for linking and low profile repeaters In both analog and digital modes. A unique 20 pin connector is used for the radio interface.
These radios need specific programming software and cables.
AP-50 Audio Processing Module
Utilizing an AP-50 Audio Processing Module makes a simple and effective way to add additional remote receivers and flat audio response to repeaters.
Satellite Station
The Icom IC-9700 Triband transceiver makes a great remote Satellite and VHF/UHF/SHF station.
This plug and play solution generates a webpage for control and display.
RF INTERMOD UHF DUPLEXERS
RF INTERMOD UHF DUPLEXERS
Fantastic duplexers. We have 6 in service.
For Remote Control of devices
Building community based Remote Bases and Repeaters
STATION MASTER CONTROLLER
Using a dedicated HF Station control system to control the selection of antennas, rotor control, bandpass filters, etc.
DIGITAL MODES
Having Digital Mode Access increases the overall effectiveness.
Our Elmers
Having an effective antenna system makes a tremendous difference
Our Community
Being able to access various systems and capabilities remotely, truly showcases the hobby.
Experimenting...
From HF to SPACE
The ODYSSEY is the outcome of many hours of research, experimentation, and application of radio, networking and off-grid technologies.
It is comprised of a number of different systems that can be interconnected via radio frequencies, the internet and the AREDN - Amateur Radio Emergency Network.
We call it the ODYSSEY because of all the various rabbit holes of learning we entered in our quest to build our ultimate communication system.
SASKWARN COMMUNITY RADIO
"Creating and building enjoyment for today and into the future."
VE5DR
Photo of wifi controlled CSN SAT Self-contained Antenna Tracker that controls the IC-9700 Remote Base controlled by SDR-CONTROL app.
System One is a Remote Base that also acts as a control operation suite.
This station can be used as a base, mobile and portable.
It can be accessed remotely via RF or the Internet. It can work the ISS repeater and other satellites.
It is the Ultimate Shack Radio Stand, GO-Box and entertainment center.
Starting with raw 12 inch by 12 inch by .5 inch clear acrylic sheets for its shell, this cus
The above picture is the early stages of a custom designed multiple platform, multiple receiver, signal to noise ratio voting system.
An Arcom RC-210 repeater controller, Raytheon SNV-12 Voter, MUX-25, CTCSS M7716 Smart Squelch, STM32 DVM, Clearnode CLR-RPT, two Meanwell EP-360 26 amp power supplies, DIYSOLAR4U 20 amp Sol charge controller, 100 aH LiPo4 13 volt battery, 195 Watt solar panel, Kenwoo
Webpages are available on the dedicated VE5DR network for many of the programs and is accessible on the 11 inch touchscreen. Utilizing a 4K TV as the second monitor makes it an ideal presentation tool for local use and with livestreaming software for remote viewers.
A Windows Mini-PC and a Raspberry Pi is available for different applications.
This modular and open design fits in well for remote ba
